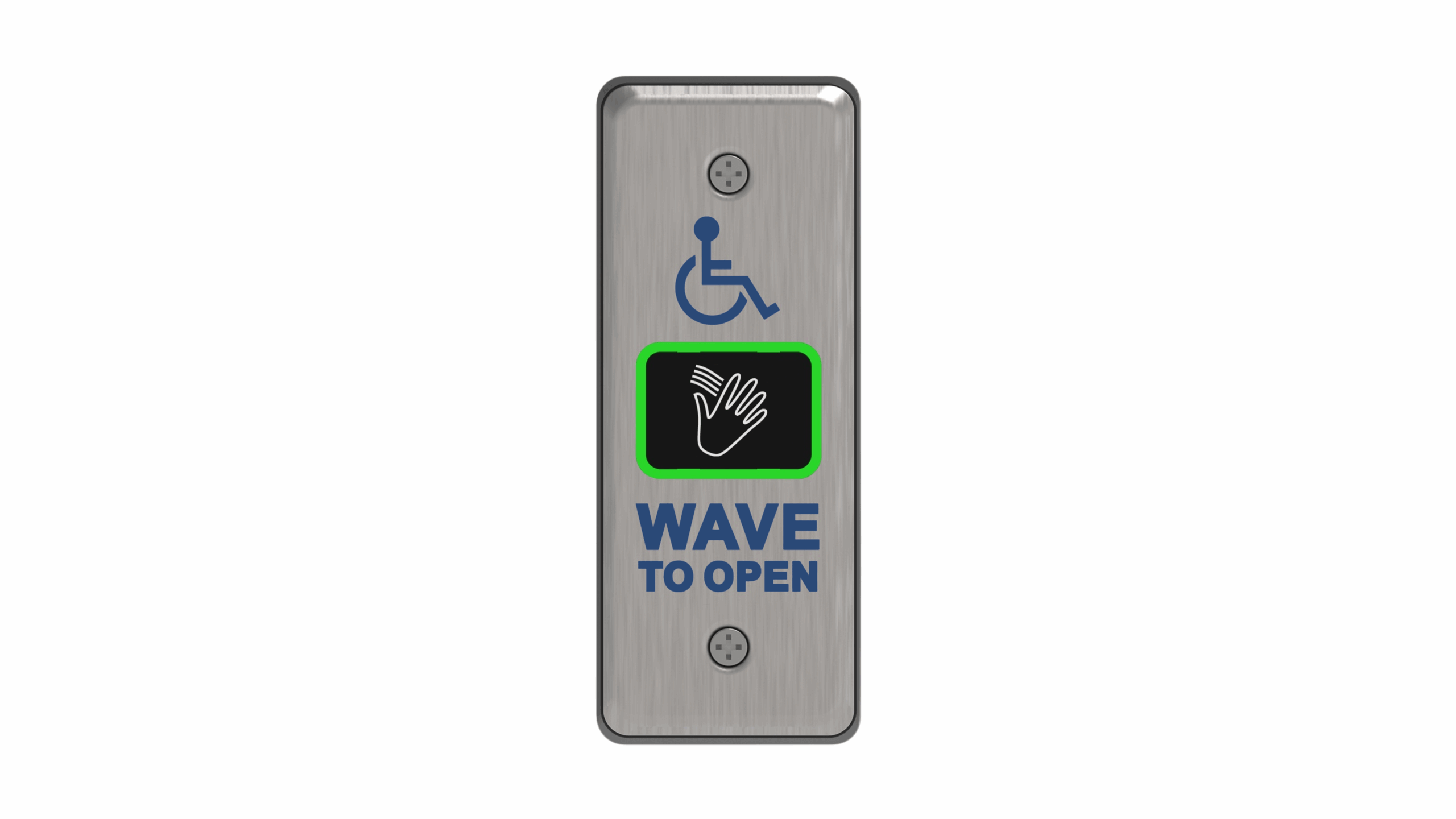

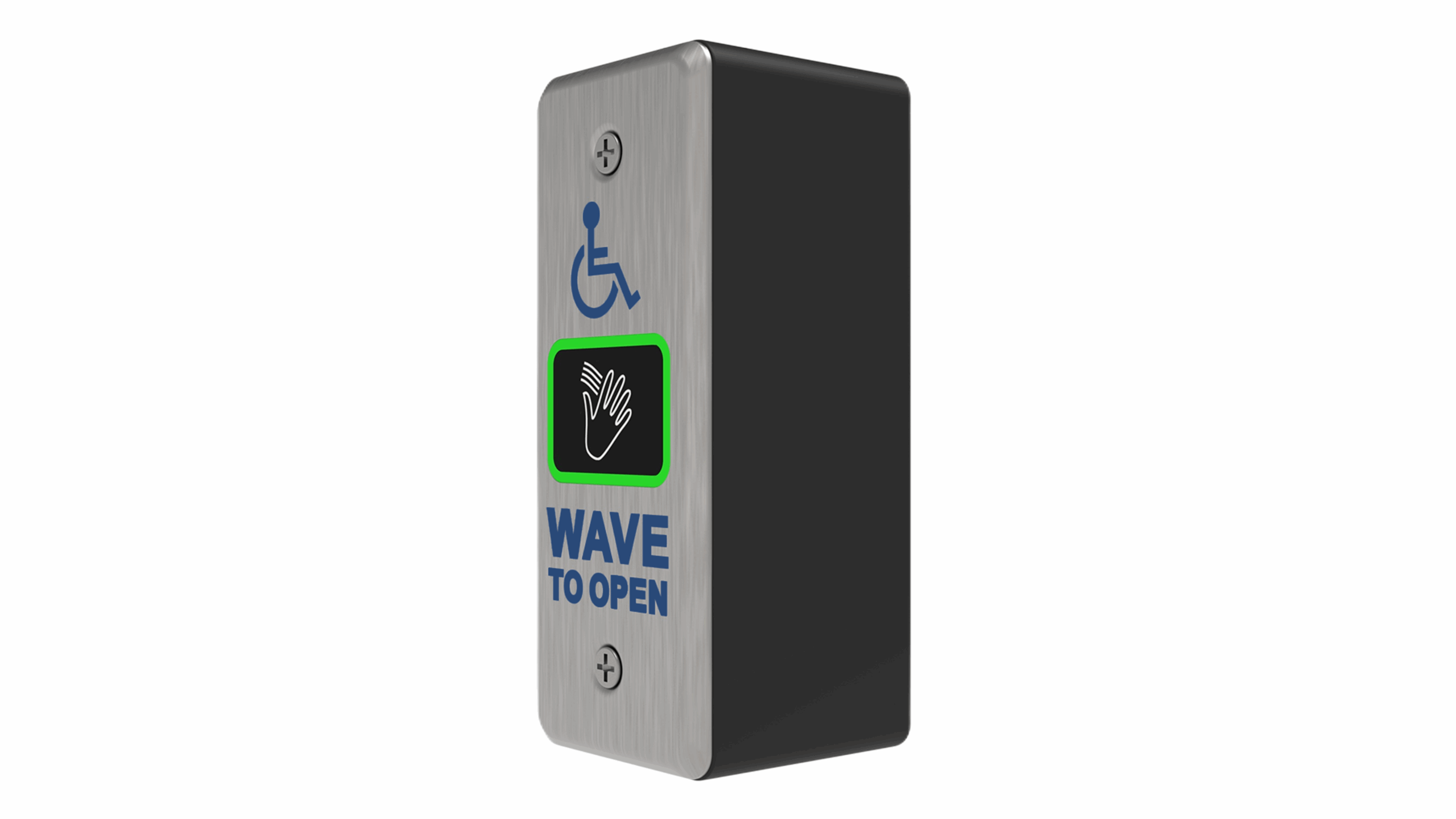

Wireless Touch-Free Wave Switch (Narrow)
The MZE WB2501B offers a slim, modern design ideal for narrow door frames or mullions where standard-size switches cannot be installed.
Combining wireless flexibility with reliable touch-free activation, it enhances hygiene, accessibility, and convenience in commercial, healthcare, and public facilities.
Powered by battery or external 12/24V AC/DC, the WB2501B allows easy, cable-free installation for various environments.
3-Year Warranty
Tough Builds
Fast Installs
Smart Control
Description
| Activation Type: |
Wireless touch-free infrared sensor |
| Detection Range: |
Adjustable 3–10 cm |
| Power Supply: |
12/24V DC ±12% or battery powered |
| Contact Output: |
(1) Form ‘C’ contact rated at 1A @ 30V DC |
| Illumination: |
LED ring indicator (Dual color – Blue / Green) |
| Construction: |
Narrow stainless steel faceplate |
| Installation Type: |
Surface or flush mount |
| Compatibility: |
All automatic door and access control systems |
| Operating Temperature: |
–40 °C to +55 °C (–4 °F to +131 °F) |
| Warranty: |
3 years |
Resources
Spec Sheets
WB2501B Spec Sheet
Installation Manuals
WB2501B Manual
WB2501B Manual FR
