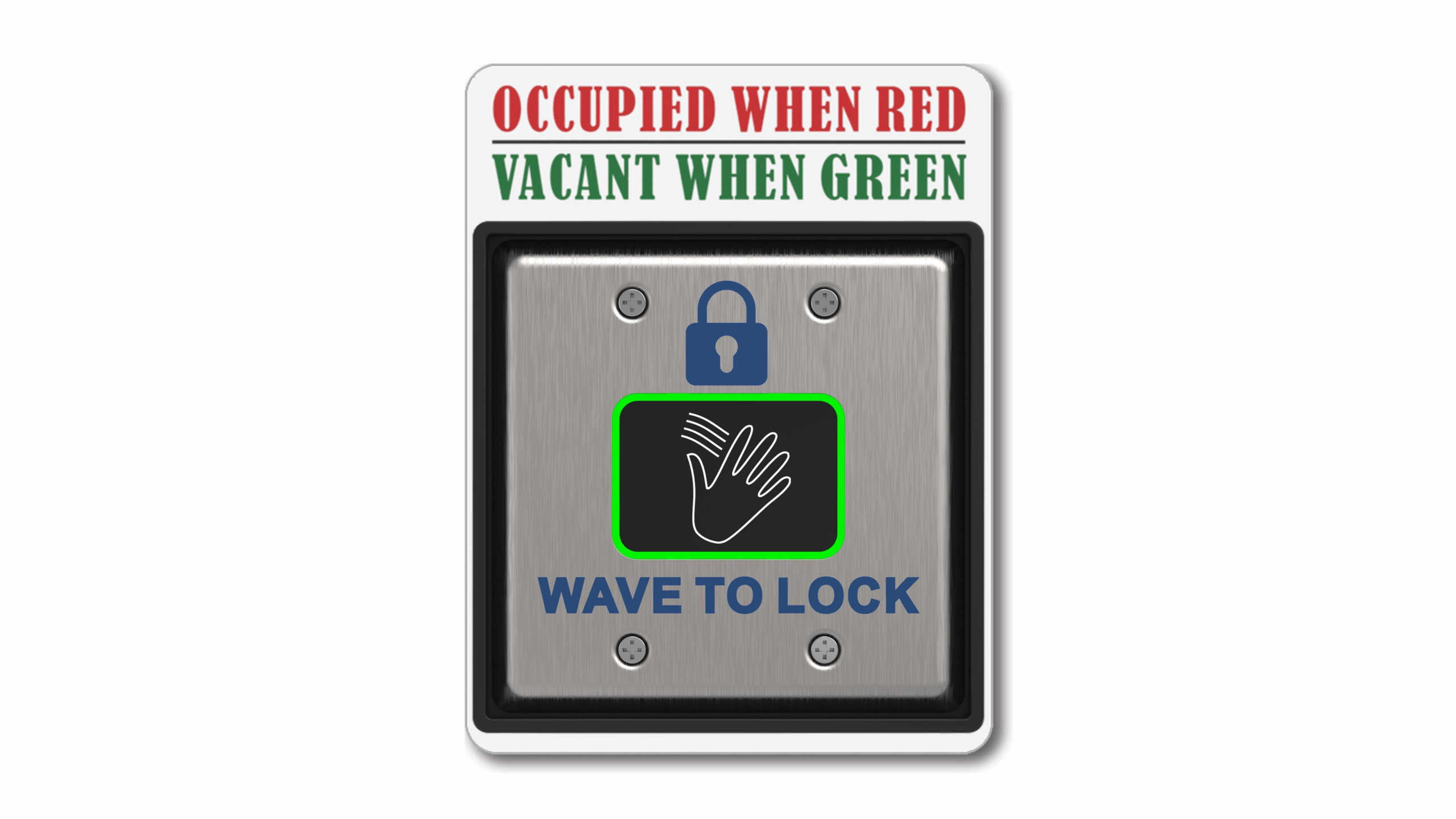

Illuminated Wave to Lock Switch (with Occupied/Vacant)
The MZE WB5501BLB is a touch-free infrared “Wave to Lock” switch designed for automatic door locking in barrier-free restroom and access control systems.
When activated, the switch sends a secure lock command to the controller or relay, enabling doors to lock without physical contact.
Its LED-illuminated stainless-steel faceplate provides clear visual feedback, while the hardwired 12/24V DC design ensures continuous, maintenance-free operation.
3-Year Warranty
Tough Builds
Fast Installs
Smart Control
Description
| Activation Type: | Touch-free infrared sensor |
| Function: | Lock activation / door secure command |
| Detection Range: | Adjustable 3–10 cm |
| Power Supply: | 12/24V DC ±12% (hardwired, battery option) |
| Contact Output: | (1) Form ‘C’ contact rated at 1A @ 30V DC |
| Illumination: | LED backlight (dual color – red / green) |
| Construction: | Double-gang stainless steel faceplate |
| Graphics: | “Wave to Lock” laser-etched symbol and text |
| Installation Type: | Surface or flush mount |
| Compatibility: | All automatic door and restroom locking systems |
| Operating Temperature: | –40 °C to +55 °C (–4 °F to +131 °F) |
| Warranty: | 3 years |
Resources
Spec Sheets
WB5501BLB Spec Sheet
Installation Manuals
WB5501BLB Illuminated Wave to Lock Switch Manual
WB5501BLB Illuminated Wave to Lock Switch Manual FR
