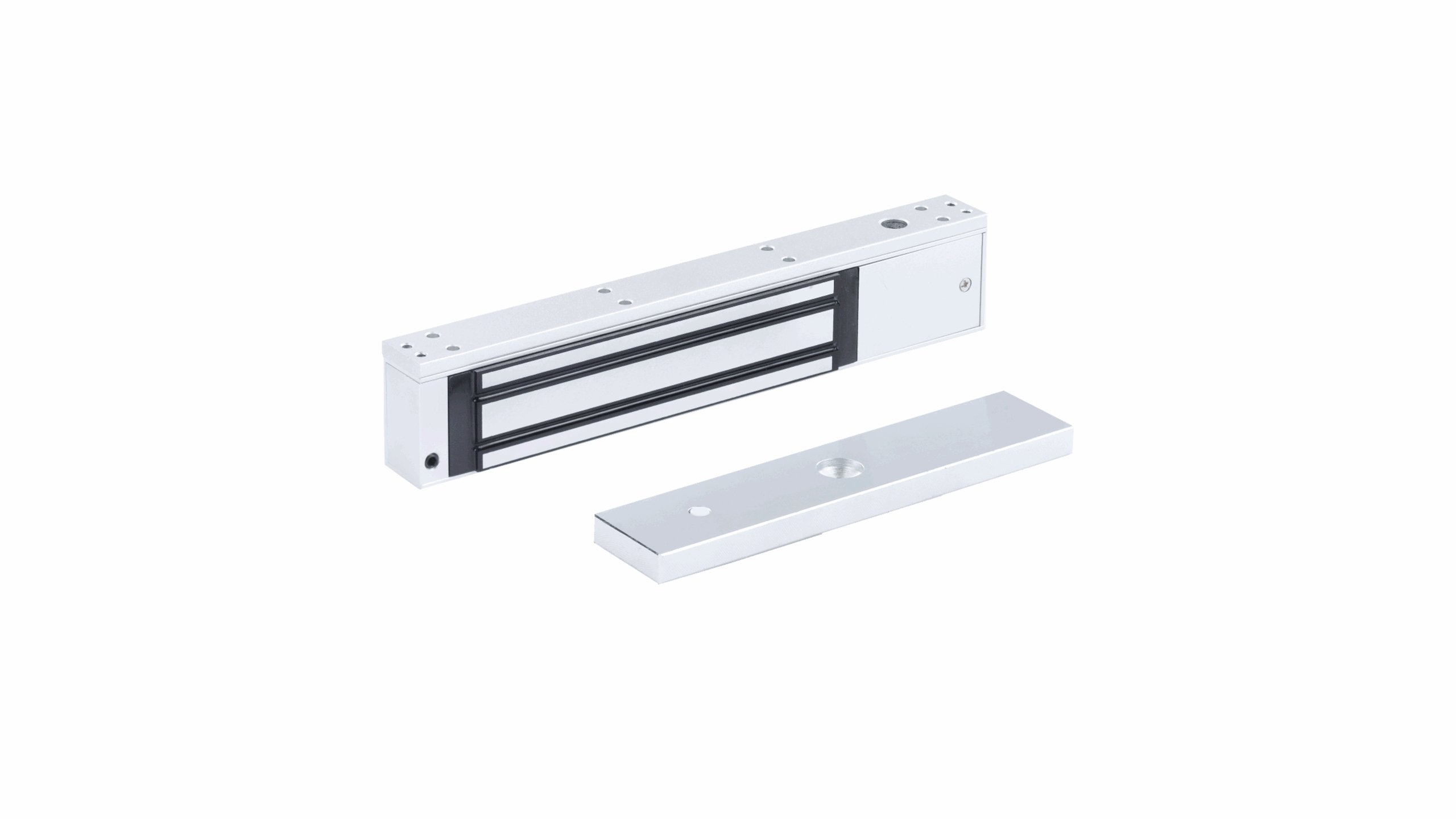

600lbs Single Door Magnetic Lock w/ Lock Status
The MZE ML280 is a compact, high-reliability electromagnetic lock designed for single-door security in commercial and institutional environments.
It provides a holding force of 280 kg (600 lbs) and supports dual voltage operation (12VDC / 24VDC) with a built-in reverse current protection circuit for improved electrical safety and system compatibility.
Built with anti-residual magnetism and wear-resistant construction, the ML280 ensures long-term durability and consistent locking performance.
Delivering up to 20% greater holding strength than standard models, it is UL (USA) and CE (EU) certified to meet international safety and quality standards.
Using pure electromagnetic suction with no mechanical wear, the ML280 guarantees quiet, stable, and maintenance-free operation—ideal for airports, banks, offices, and modern smart buildings.
3-Year Warranty
Tough Builds
Fast Installs
Smart Control
Description
| Mounting Type: |
Surface mount |
| Power Supply: |
Field-selectable 12 / 24 VDC |
| Holding Force: |
280 kg (600 lbs) |
| Time Delay: |
Adjustable 0 – 30 seconds |
| Bond Sensor Output: |
1A @ 30V DC (lock status output) |
| Construction: |
Weather & vandal resistant aluminum / stainless steel housing |
| Mounting Accessories: |
Compatible with a wide range of brackets and spacers |
| Compatibility: |
Works with all access / egress control systems |
| Operating Temperature: |
–15 °C to +50 °C (5 °F to 122 °F) |
| Finish: |
Brushed aluminum (standard) |
| Certification: |
UL (USA), CE (EU) |
Resources
Spec Sheets
ML280 Spec Sheet
Installation Manuals
ML280 Single Door Magnetic Lock Manual
ML280 Single Door Magnetic Lock Manual FR
