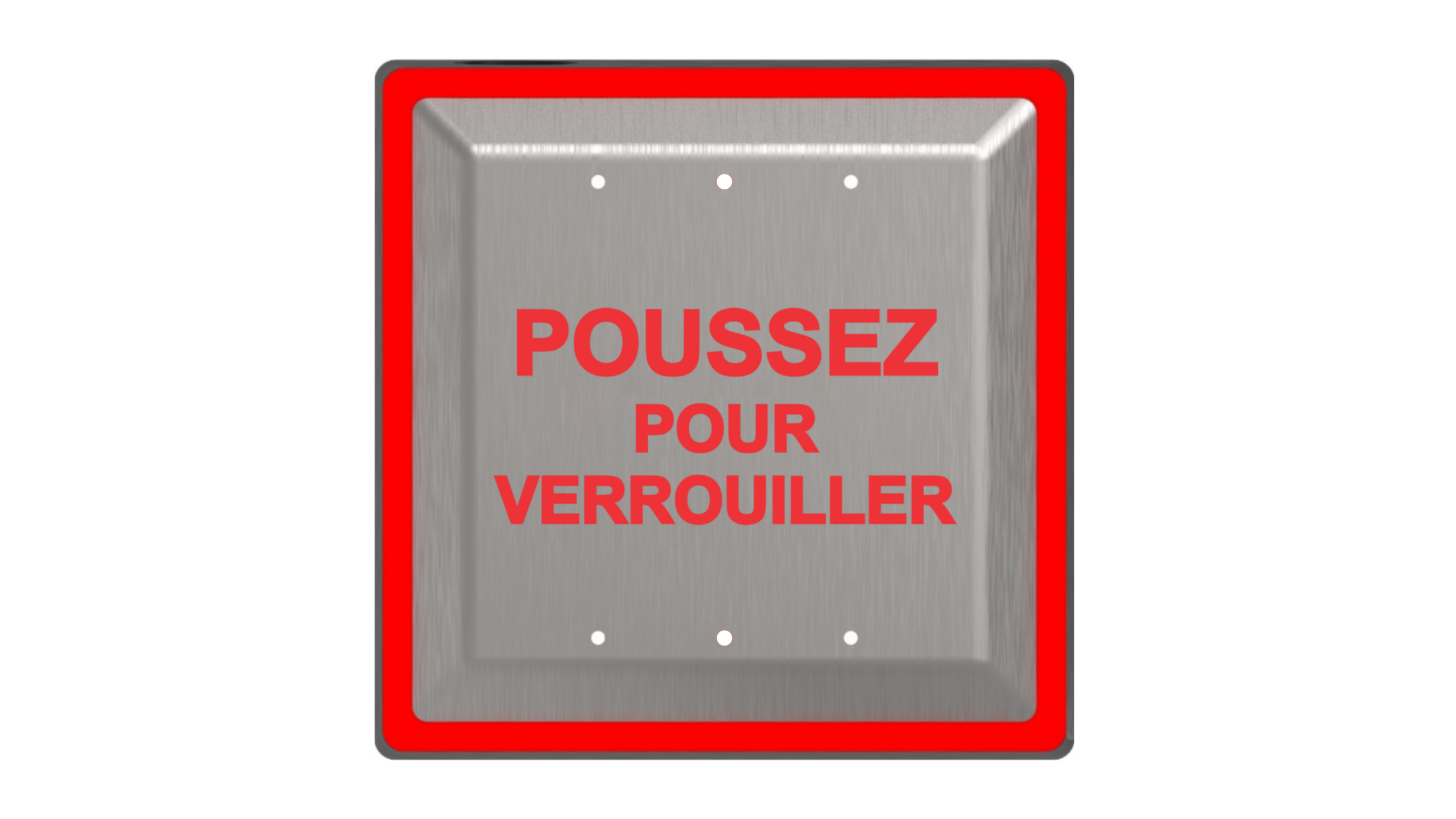

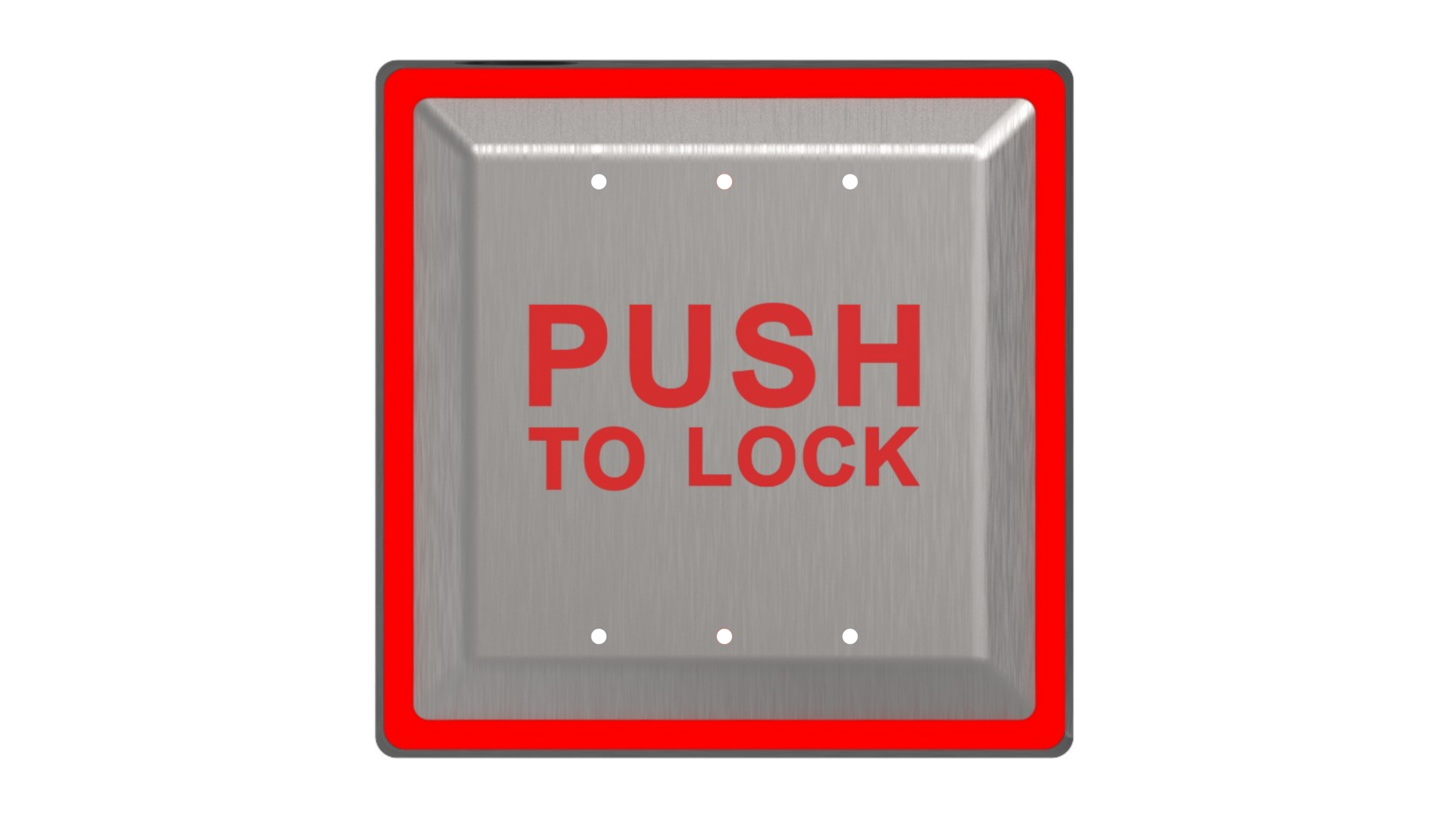

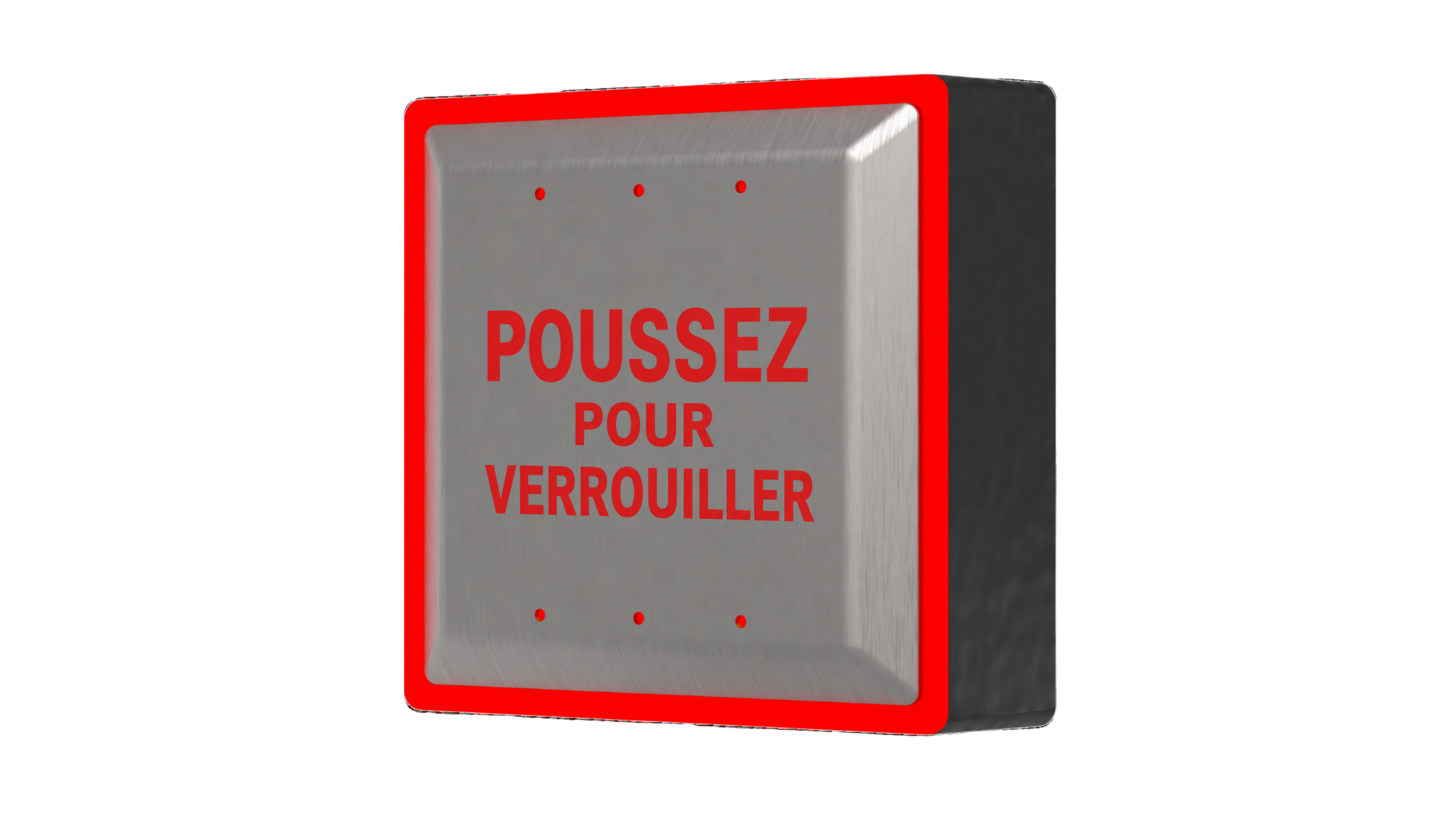

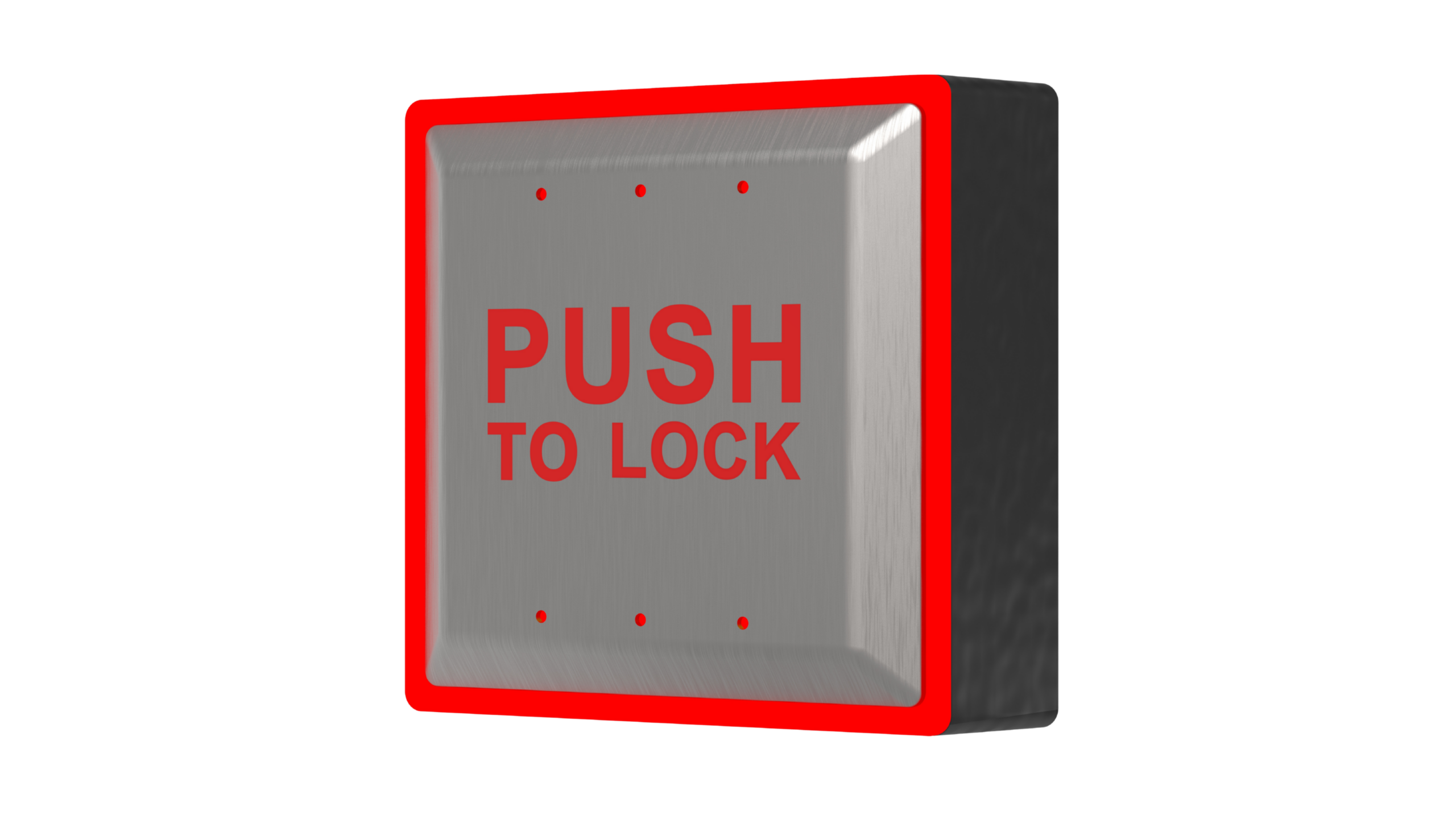

Illuminated Push To Lock Switch (Double Gang)
The PBL55BL(-F) Series illuminated push plate switches are designed for door activation and restroom control applications. The push plate combines visual status indication, relay output and audible activation feedback in a single device.
The 1.5 mm brushed 304 stainless steel faceplate uses etched and paint-filled graphics for long service life. An internal tactile switch rated for 50 million operations drives the built-in relay control output. The switch may be used as a stand-alone powered push plate or as a PUSH TO OPEN / PUSH TO LOCK input within a restroom control system.
3-Year Warranty
Tough Builds
Fast Installs
Smart Control
Description
| Activation Type: | Illuminated push-plate activation |
| Operating Modes: | Normal (timed) / Restroom (momentary) |
| Relay Output: | N.O. / COM |
| Contact Rating: | 3 A @ 24 VDC |
| Input Voltage: | 12–24 V AC/DC |
| Illumination: | Red / Green / Blue LED |
| Light Sync Input: | 12–24 VDC, 10 mA |
| Mounting: | Double-gang |
| Operating Temperature: | −40°C to +55°C |
| Faceplate Material: | 1.5 mm brushed 304 stainless steel |
| Overall Size: | 127.5 × 127.5 × 53.5 mm |
| Warranty: | 3 years |
Resources
Spec Sheet
PBL55BL(-F) Illuminated Push to Lock Switch Spec Sheet (EN/FR)
Installation Manual
PBL55BL(-F) Illuminated Push to Lock Switch Manual (EN/FR)
